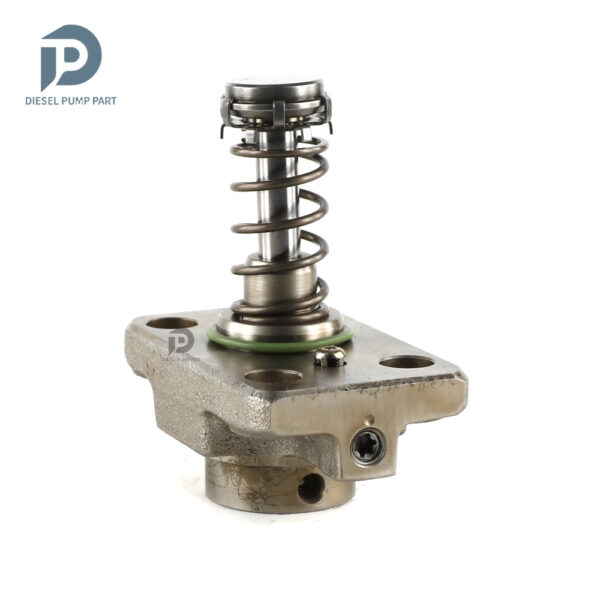

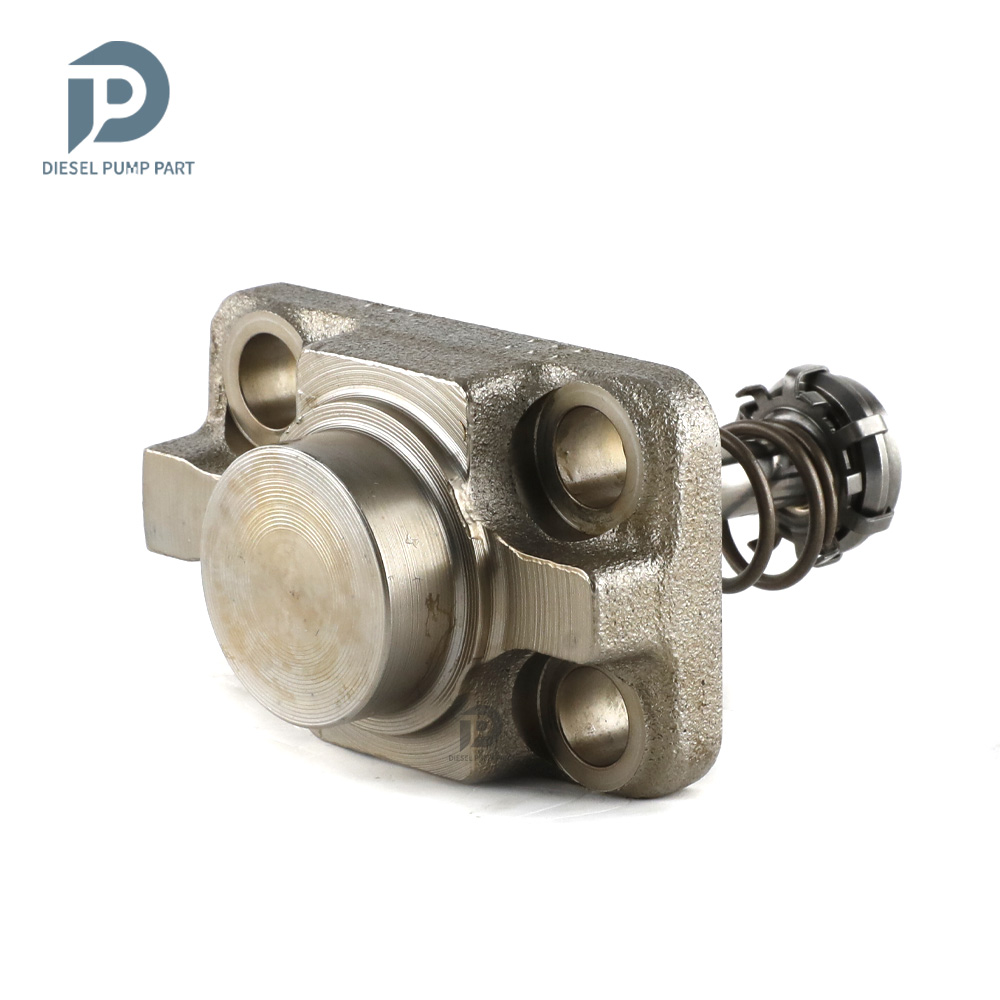

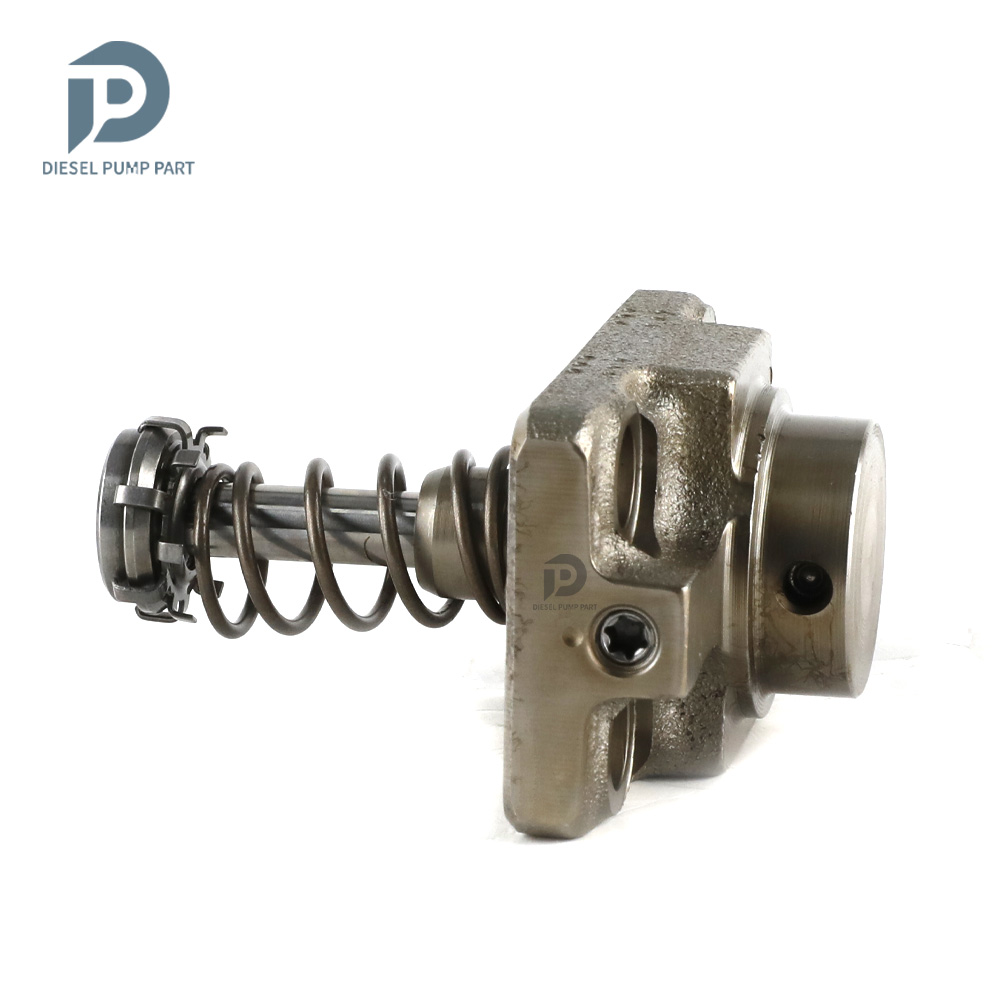

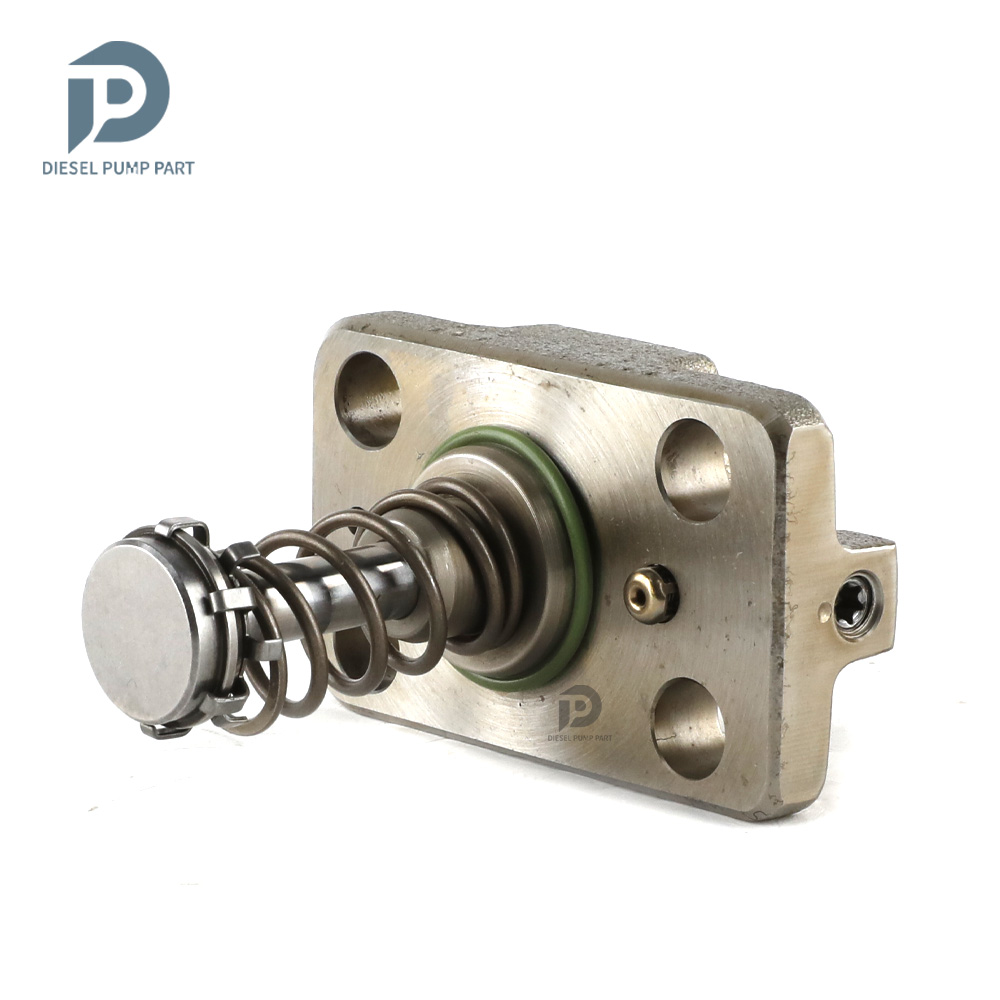

1. F01M101781 Diesel Pump Plunger Basic Information

Title	F01M101781 CP1 Series Diesel Pump Plunger	Quality
SKU	Y2W2F01M101781	Original New



2. F01M101781 Diesel Pump Plunger Common Part Number

• Diesel Pump Plunger Exchange Information

Diesel Pump Plunger Part Number	OE Number	OE Number	OE Number
F01M101781	2643H076	2643H077	5001826791



• Diesel Pump Plunger Application Information

Oil Pump Part Number	Vehicle Brand	Engine Model	Cylinder	Voltage
0445010131	For MAHINDRA	mHawk	4	12 V
0445010158	For BAW	CA4DC2-10E3	4	12 V
0445010159	For GREAT WALL	GW2.8TC_EU3	4	12 V
0445010165	For CHERY	SQR481A	4	12 V
0445010169	For JMC	JX493ZQ4A_EU3	4	12 V
0445010176	For MAHINDRA	mHawk	4	12 V
0445010179	For JINBEI	DK4A	4	12 V
0445010182	For CHANGFENG	R425DOHC	4	12 V
0445010186	For DONGFENG	Yunnei 4D19TCI	4	12 V
0445010191	For LUFENG	R425DOHC	4	12 V
0445010198	For DONGFENG	4102TCI_EU3	4	12 V
0445010199	For DONGFENG	/	/	/
0445010200	For JAC	493TCI_EU3	4	12 V
0445010217	For YANGCHAI	4DA1	4	24 V
0445010219	For QUANCHAI	4D22E	4	12 V
0445010221	For CHANGFENG	FAW Sihuan 4D28_EU3	4	24 V
0445010224	For GONOW	Laidong 4cyl_2.0L	4	12 V



• Diesel Pump Plunger Common Writing

F01M101781, 2643H076, 2643H077, 5001826791



3. F01M101781 Diesel Pump Plunger Parameter

Adaptation System: Common Rail System

 Diesel Pump Plunger Series:  CP1 Series

 Diesel Pump Plunger Type: High Pressure Common Rail Diesel Pump Plunger



4. F01M101781 Diesel Pump Plunger Specifications And Dimensions

 Diesel Pump Plunger Size: 24cm* 6cm *12cm

Diesel Pump Plunger Net Weight: 310g

 Diesel Pump Plunger Gross Weight: 500g

 Diesel Pump Plunger Quality: Original New

 Diesel Pump Plunger Package Size: 27cm*9cm *16cm

 Diesel Pump Plunger MOQ: 1 Pieces



5. F01M101781 Diesel Pump Plunger Quality Control

• Diesel Pump Plunger Testing

All diesel pump plungers are tested for electrical characteristics, accuracy, high temperature, low temperature, withstand voltage, leakage, durability, and various working conditions.

• Diesel Pump Plunger Assembling

For the quality control of the diesel pump plunger production and installation process, our company strictly follows the standard product installation data and product installation steps to install.

• Diesel Pump Plunger Inspection

The factory inspection of the diesel pump plunger is undergone full inspection, random inspection, and batch inspection three inspections. Different brands of test benches are used to test the same diesel pump plunger for more than three times for factory inspection, and the diesel pump plunger installation testing environment are progressed in dust-free workshop.



6.  F01M101781 Diesel Pump Plunger Warranty Coverage

Within 15 days after customer receives the F01M101781 diesel pump plunger, if there is a performance failure and the product has no appearance damage, customer can choose to replace it or repair it;

If the F01M101781 diesel pump plunger has performance problems during the warranty period (6-12 months), and it is confirmed that it is product’s problems after testing, you can contact our salesmen to replace the same model or a reworked product with the same performance for free;

If the diesel pump plunger house has obvious scratches, it can only be repaired and it will be returned as it is if the product is confirmed to be fault-free.

• Tips：For products not covered by warranty, our company can provide paid maintenance services. For products after paid repaired, the same performance problem will have a free warranty period within 3 months from the date of repair



7. F01M101781 Diesel Pump Plunger Not Working Normally

• There is air in the oil circuit of the engine fuel system.
• Vehicle oil pump’s oil supply system is not normal.
• Engine common rail system oil leakage or pressure limiting valve damage.
• There is a short circuit, cutting out and poor contact in the wiring harness connected to the diesel pump plunger of the vehicle.
• The long-term placement of the diesel pump plunger causes the anti-rust oil to solidify, and the internal components are stuck or the oil holes are blocked.
• Before installing, carefully check whether other components in the common rail system except the diesel pump plunger are damaged to prevent the diesel pump plunger from not working properly after being replaced.



8. F01M101781 Diesel Pump Plunger Packing

Domestic Express Packaging: Usually wrapped in waterproof scotch tape, such as picture No. 1.

International Express Packaging: Wrapped with waterproof yellow tape After wrapping the black protective film, such as picture No. 2.

Pallet Shipping: Use fumigation free and recycling trays that meet export requirements, and use white wrapping protective film to wrap and bind with cable ties for the outside, such as picture No. 3,

also, the products can be packaged according to customers’ requirements.

• The packing tray is made of plastic and can be recycled.
• Transparent tape, yellow tape, black wrapping protective film, white wrapping protective film are non-degradable materials, please dispose of them properly.
• Minors are prohibited from using transparent tape, yellow tape, black wrapping protective film, and white wrapping protective film to avoid personal injury.

Domestic express packaging: Wrapped with Transparent tape	International express packaging: Wrapped with yellow tape after wrapping black protective film	Pallet shipment: Use pallets that meet export requirements and wrap with white plastic wrap and tie.
